Fire Sensor

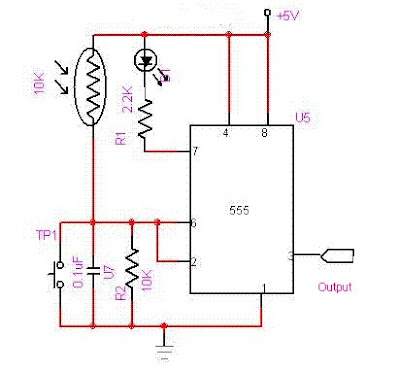

this circuit called as by the name of fire censor. as censor is applied thermistor of the size 10K, and IC 555 as output signal producer which will yield sine signal ( analogue). for output can be connected at ADC causing can be yielded digital signal and later can be connected direct with Microcontroller.
